Meet sonnen battery

Your whole home battery backup solution!

REQUEST A QUOTE

Powering Your Life with Smart Energy

The Sonnen battery is an energy storage solution that utilizes intelligent energy management software. It is easily adaptable to your individual needs. The system is available in a variety of storage capacities and configurations, allowing for extensibility and expansion. Sonnen allows you to save money every single day by harvesting energy from your solar system or the utility grid when it is cheapest, and using the stored energy from the battery to power your home when rates are more expensive.

You're in good hands with us

10+ Years

Since 2008, Sonnen is transforming the way we use energy with smart energy solutions.

55k+ Installs

Over 55,000 homeowners around the world power their lives with a Sonnen battery.

35+ Awards

Sonnen continues to win global awards for innovation, quality, and thought leadership.

Energy Automation with ecoLinx

Born of German engineering and American ingenuity, Sonnen integrates with any solar system, protects your home from outages before they happen, and stores energy for when you need it.

General

  • Usable capacity: 12kWh - 20kWh (in 2kWh steps)

  • Dimensions (in) W/H/D: 26/84/19

  • Weight *approximate): 724 - 936 pounds

  • Grid integration: AC-coupled

  • Ambient temperatures: 41 - 113ºF

  • Enclosure rating: NEMA 12

Power Unit

  • Continuous output: (AC) 8,000-watts

  • AC specifications: 240VAC / split phase / 60Hz

  • Peak efficiency of inverter: 95%

Nominal Power Rating

  • Off-grid output at 25ºC: 8kW

  • On-grid output at 25ºC: 7kW

Integrated Transfer Switch

  • Current ranting: 200 amps

  • Transfer time: < 100 milliseconds

Warranty / Lifespan

  • Industry leading standard lifetime of:

    • 15,000 charge cycles or 15-years

UL Listing

  • Certified to UL 9540, UL 1741 (Inverter) and UL 1973 (battery modules) standards and FCC part 15 Class B compliant.

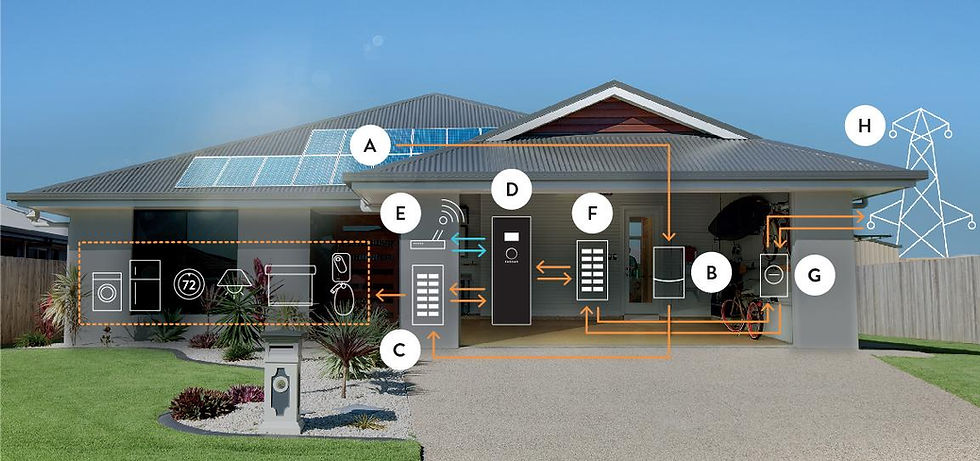

How the Sonnen ecoLinx Works

A

Solar Panels

Your solar panels turn sunlight into clean DC (direct current) electricity.

B

Solar Inverter

Your solar inverter converts solar generated DC electricity into AC (alternation current) electricity that can power your home.

C

Main Electrical Panel

AC electricity passes through your electrical panel to power devices in your home.

D

ecoLinx - Storage

Your Sonnen ecoLinx converts excess AC electricity to DC for storage in its battery modules. When you need it, the electricity is converted back to AC - day, night, or during a power outage.

E

ecoLinx - Energy Automation

Your ecoLinx complements your solar and/or home automation system to power other smart devices in your home. Together, they effectively manage and maximize how you use energy in your home without disrupting your lifestyle.

F

Protected Electrical Panel

A second breaker box is an additional electrical panel that distributes to critical devices in your home in an outage from your ecoLinx.

G

Energy Meter

Your meter monitors and measures electricity use by your home and excess solar power fed into the utility grid.

H

Utility Grid

Your utility keeps you connected to local electrical grid, ensuring you have access to grid power when you need it.

Power your home with clean energy on your terms

Intelligent Energy Storage with eco

eco provides greater energy independence for the eco-conscious home with battery storage tailored to your lifestyle. Everyday can be cleaning living that's safe, reliable, and adaptable.

General

  • Usable capacity: 5kWh - 20kWh (in 2.5kWh steps)

  • Dimensions (in) W/H/D: 26/57/19 - 26/84/19

  • Weight *approximate): 394 - 936 pounds

  • Grid integration: AC-coupled

  • Ambient temperatures: 41 - 113ºF

  • Enclosure rating: NEMA 12

Power Unit

  • Continuous output: (AC) 3,000 - 8,000-watts

  • AC specifications: 240VAC / split phase / 60Hz

  • Peak efficiency of inverter: 95%

Nominal Power Rating

  • Off-grid output at 25ºC: 3kW - 8kW

  • On-grid output at 25ºC: 3kW - 7kW

Integrated Transfer Switch

  • Current ranting: 200 amps

  • Transfer time: < 100 milliseconds

Warranty / Lifespan

  • Guaranteed standard lifetime of:

    • 10,000 charge cycles or 10-years

UL Listing

  • Certified to UL 9540, UL 1741 (Inverter) and UL 1973 (battery modules) standards and FCC part 15 Class B compliant.

How the Sonnen eco Works

A

Solar Panels

Your solar panels turn sunlight into clean DC (direct current) electricity.

B

Solar Inverter

Your solar inverter converts solar generated DC electricity into AC (alternation current) electricity that can power your home.

C

Main Electrical Panel

AC electricity passes through your electrical panel to power devices in your home.

D

Sonnen eco - Storage

Your Sonnen eco converts excess AC electricity to DC for storage in its battery modules. When you need it, the electricity is converted back to AC - day, night, or during a power outage.

E

Protected Electrical Panel

A second breaker box is an additional electrical panel that distributes to critical devices in your home in an outage from your ecoLinx.

F

Energy Meter

Your meter monitors and measures electricity use by your home and excess solar power fed into the utility grid.

G

Utility Grid

Your utility keeps you connected to local electrical grid, ensuring you have access to grid power when you need it.
